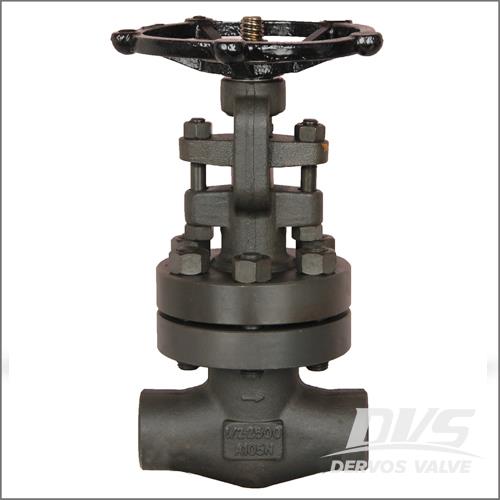

Bolted Bonnet A105 Gate Valve, 2500LB, 1 Inch, Full Bore, Threaded
Key Specifications / Features
Model No.: Hits: 94
China A105 Valve Manufacturer Provides Bolted Bonnet A105 Gate Valve, 2500LB, 1 Inch, Full or Reduced Bore, Threaded, Socket or Butt-Welded.
Request a quoteTags:
Detail Information
Quick Detail:
Type: Bolted Bonnet A105 Gate Valve.
Material: ASTM A182 F316L.
Valve Size: 1 Inch.
Pressure Rating: Class 2500LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Pressure Rating: Class 1500LB - 2500LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GATE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
Design and Manufacture Conform to: API 602, BS5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Rising Stem / Non-Rising Handwheel.
Type: Bolted Bonnet A105 Gate Valve.
Material: ASTM A182 F316L.
Valve Size: 1 Inch.
Pressure Rating: Class 2500LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 602, API 606, BS 5352, ASME B16.34, ASME B16.11, ASME B1.20.1, ASME B16.25.
Valve Size: 1/2 - 4 Inch.Pressure Rating: Class 1500LB - 2500LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL GATE VALVE - Outside Screw & Yoke, Bolted Bonnet.
STANDARD MATERIALS:
 |
PART NAMES | MATERIALS |
| BODY | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
|
| BONNET | A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc. |
|
| SEAT | ASTM A276 410 + HF | |
| WEDGE | ASTM A276 420 | |
| STEM | ASTM A276 410 | |
| R-RING | 304 SS | |
| HANDWHEEL | ASTM A197 | |
| PACKING | GRAPHITE | |
| GLAND | ASTM A276 410 |
 |
PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 1500LB | 5575 | 4100 | 90 | - | |
| 2500LB | 9275 | 6800 | - | 6800 | |
Design and Manufacture Conform to: API 602, BS5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Rising Stem / Non-Rising Handwheel.
