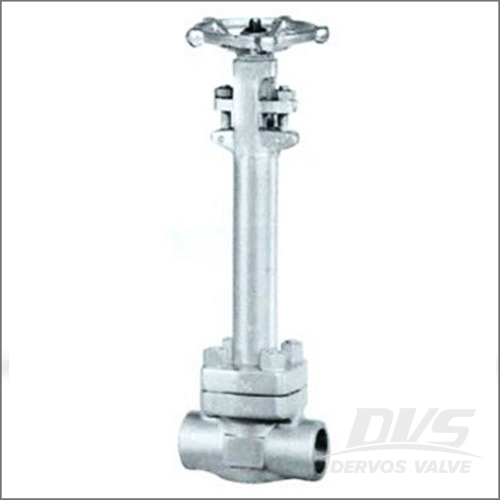

Forged Stainless Steel Cryogenic Globe Valve, 1/2-4 Inch, OS&Y
Key Specifications / Features
Model No.: Hits: 35
China OS&Y Globe Valve Provider Offers Forged Stainless Steel Cryogenic Globe Valve, 1/2-4 Inch, Class 150-1500 LB, OS&Y, Threaded, SW or BW End, API 602.
Request a quoteTags:
Detail Information
FORGED STAINLESS STEEL CRYOGENIC GLOBE VALVE - Outside Screw & Yoke(OS&Y)
STANDARD MATERIALS
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
STANDARD MATERIALS
| PART NAMES | MATERIALS |
| BODY | F304; F304L; F316; F316L |
| BONNET | F304; F304L; F316; F316L |
| SEAT | ASTM A276 304(L) / 316(L) + HF |
| WEDGE | ASTM A276 304(L) / 316(L) |
| STEM | ASTM A276 304(L) / 316(L) |
| GASKET | 304 + GRAPHITE |
| HANDWHEEL | ASTM A197 |
| PACKING | GRAPHITE |
| GLAND | ASTM A276 304(L) / 316(L) |
SPECIFICATIONS
⑴ Design and Manufacture Conform to: API 602, BS 6364, MSS SP-134, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
⑵ Valve Size: 1/2 - 4 Inch.
⑶ Applicable Rating: Class 150 LB - 1500 LB.
⑷ Temperature Rating: Down to -196℃.
⑸ Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded
★ Long Extended Bonnet
★ Actuator: Handwheel
★ Pressure Relief Design ( Pressure Balance Design)
★ Fire Safety / Anti-static Design
★ Non-Rising Handwheel
