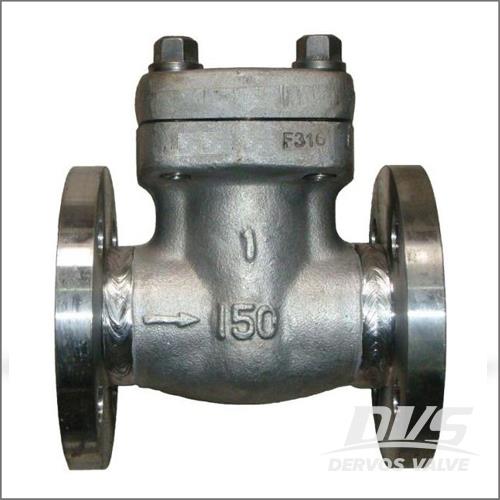

Forged Steel Lift Check Valve, ASTM A182 F316, Class 150, RF
Key Specifications / Features
Model No.: Hits: 198
Lift Check Valve Supplier in China Offers Forged Steel Lift Check Valve, ASTM A182 F316, 150 LBs, RF, Bolted Cover, API 602, ASME B16.34, Piston Type.
Request a quoteTags:
Detail Information
Type: Forged Steel Lift Check Valve.
Body Material: ASTM A182 F316.
Disc material: 316+STL.
Material Std.: AISI/ASTM.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
● Design conform to API 602, ASME B16.34
● Face to Face conform to ASME B16.10
● Flange dimension conform to ASME B16.5
● Test & Inspection Standard: API 598
● Type: Lift/ Piston
● Origin: Zhejiang, China
● Molding Style: Forging
● Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate etc
● Warranty Period: 18 months
● Tariff Code: 8481804090
Body Material: ASTM A182 F316.
Disc material: 316+STL.
Material Std.: AISI/ASTM.
Valve Size: 1/2 - 2 Inch.
Applicable Pressure Rating: Class 150 LB.
Molding Style: Forging.
● Design conform to API 602, ASME B16.34
● Face to Face conform to ASME B16.10
● Flange dimension conform to ASME B16.5
● Test & Inspection Standard: API 598
● Type: Lift/ Piston
● Origin: Zhejiang, China
● Molding Style: Forging
● Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate etc
● Warranty Period: 18 months
● Tariff Code: 8481804090
