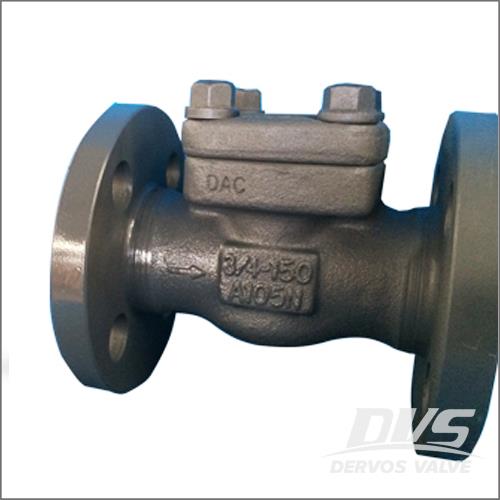

Integral Flanged Swing Check Valve, ASTM A105N, 3/4 Inch, Class 150
Key Specifications / Features
Model No.: Hits: 204
Integral Flanged Check Valve Supplier in China Offers Integral Flanged Swing Check Valve, ASTM A105N, 3/4 Inch, Class 150, Forged Steel, Bolted Cover.
Request a quoteTags:
Detail Information
Quick Detail:
Type: Integral Flanged Swing Check Valve.
Material: ASTM A105N.
Valve Size: 3/4 Inch.
Applicable Pressure Rating: Class 150 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 608, BS 5351, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL FLANGED SWING CHECK VALVE - Bolted Cover.
STANDARD MATERIALS
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Flanged Type
★ Bolted Cover
★ Reduced Bore
Type: Integral Flanged Swing Check Valve.
Material: ASTM A105N.
Valve Size: 3/4 Inch.
Applicable Pressure Rating: Class 150 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
Product Range:
Material: ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy.
Standards: API 608, BS 5351, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.
FORGED STEEL FLANGED SWING CHECK VALVE - Bolted Cover.
STANDARD MATERIALS
 |
PART NAMES | MATERIALS |
| BODY | ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. | |
| BONNET | ASTM A105, ASTM A350 LF2, ASTM A182 F5, ASTM A182 F22, ASTM A182 F304, ASTM A182 F304L, ASTM A182 F316, ASTM A182 F316L, ASTM A182 F347, ASTM A182 F321, ASTM A182 F51, ASTM A182 F55, Inconel Alloy, Monel Alloy, Hastelloy Alloy. | |
| SEAT | ASTM A276 410 + HF | |
| DISC | ASTM A276 420 | |
| GASKET | 304 + GRAPHITE | |
| COVER BOLT | ASTM A193 B7 | |
| ROCKER | ASTM A351 CF8 |
 |
PRESSURE TEST ( A105 ) | ||||
| CLASS | SHELL (psig) | BACKSEAT(psig) | SEAT(psig) | ||
| WATER | WATER | AIR | WATER | ||
| 150LB | 450 | - | - | 325 | |
| 300LB | 1125 | 825 | |||
| 600LB | 2225 | 1650 | |||
| 800LB | 2975 | 2170 | |||
| 900LB | 3350 | 2450 | |||
| 1500LB | 5575 | 4100 | |||
Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34/ B16.11/ B1.20.1/ B16.25.
Structure Features:
★ End Connection: Flanged Type
★ Bolted Cover
★ Reduced Bore
