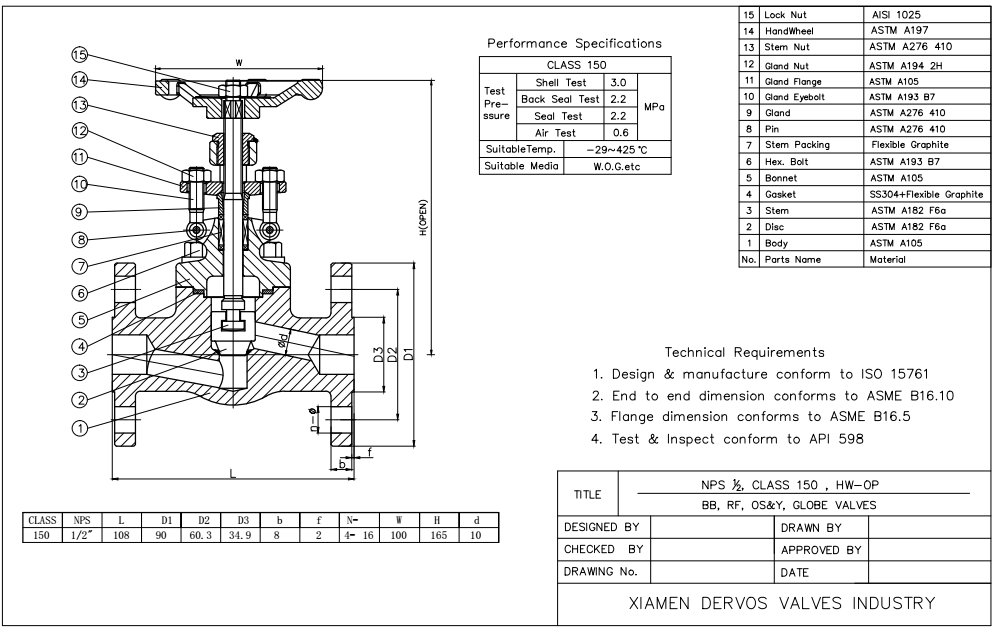

ISO 15761 Forged Globe Valve, 1/2 Inch, 150 LB, RF, Integral Seat
Key Specifications / Features
Model No.: Hits: 253
China ISO 15761 Valves Supplier Wholesales ISO 15761 Forged Globe Valve, 1/2 Inch, 150 LB, RF, Full Port Integral Seat, Customized Services.
Request a quoteTags:
Detail Information
Quick Detail:
Type: ISO 15761 Forged Globe Valve.
Body material: A105.
Disc/Stem material: F6a.
Valve Size: 1/2 Inch.
Pressure Rating: Class 150 LB.
Molding Style: Forging.
Product Range:
++++++
Basic Info:
◆ Design conform to ISO15761
◆ Face to Face conform to ASME B16.10
◆ Flange dimension conform to ASME B16.5
◆ Test & Inspection conform to API 598
◆ Connection: RF
◆ Operation: Handwheel
◆ Structure: OS&Y, Integral Seat
◆ Port: Full Port
◆ Media: Gas, Oil and Steam
◆ Origin: Zhejiang, China
◆ Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
◆ Payment Terms: 30% T/T WHEN ORDER,70% T/T BEFORE SHIPMENT
◆ Warranty Period: 18 months
◆ Tariff Code: 8481804090
Type: ISO 15761 Forged Globe Valve.
Body material: A105.
Disc/Stem material: F6a.
Valve Size: 1/2 Inch.
Pressure Rating: Class 150 LB.
Molding Style: Forging.
Product Range:
++++++
Globe valve is mainly used in the pipeline to cut, distribute and change the flow direction of the medium. The forged steel globe valve is suitable for gas, steam and oil products.
Basic Info:
◆ Design conform to ISO15761
◆ Face to Face conform to ASME B16.10
◆ Flange dimension conform to ASME B16.5
◆ Test & Inspection conform to API 598
◆ Connection: RF
◆ Operation: Handwheel
◆ Structure: OS&Y, Integral Seat
◆ Port: Full Port
◆ Media: Gas, Oil and Steam
◆ Origin: Zhejiang, China
◆ Certification: ISO 9001:2008,API602, API608, DNV/CE Certificate, API607 Fire Safe Certificate, etc.
◆ Payment Terms: 30% T/T WHEN ORDER,70% T/T BEFORE SHIPMENT
◆ Warranty Period: 18 months
◆ Tariff Code: 8481804090
