Socket Welded Globe Valve, ASME B16.34, BS 5352, Forged, 1/2-4 Inch

Key Specifications / Features

Model No.: Hits: 428

China Socket Weld Globe Valve Maker Produces Socket Weld End Globe Valve, ASME B16.34, BS 5352, Forging Molding, Class 150-1500, Temp Rating Up to 500℃.

Request a quote

Tags:

Detail Information

Type: Socket Weld End Globe Valve.
Material: ASTM A105, etc.
Valve Size: 1/2 - 4 Inch.
Applicable Pressure Rating: Class 150 LB - 1500 LB.
Temperature Rating: Up to 500℃.
Molding Style: Forging.

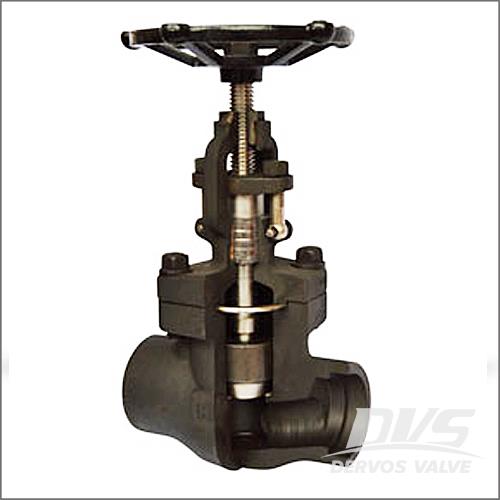

FORGED STEEL GLOBE VALVE - Outside Screw & Yoke, Bolted Bonnet.

STANDARD MATERIALS:

	PART NAMES	MATERIALS
	BODY	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
	BONNET	A105; LF2; F5; F22; F304; F304L; F316; F316L; F347; F321; F51; F55; Inconel; Monel; Hastelloy; etc.
	SEAT	ASTM A105 + HF
	DISC	ASTM A276 420
	STEM	ASTM A276 410
	GASKET	304 + GRAPHITE
	HANDWHEEL	ASTM A197
	PACKING	GRAPHITE
	GLAND	ASTM A276 410

PRESSURE TEST ( A105 )
CLASS	SHELL (psig)	BACKSEAT(psig)	SEAT(psig)
CLASS	WATER	WATER	AIR	WATER
150LB	450	325	-	325
300LB	1125	825		825
600LB	2225	1650		1650
800LB	2975	2175		2175
900LB	3350	2450		2450
1500LB	5575	4100		4100

Design and Manufacture Conform to: API 602, BS 5352, ASME B16.34 / B16.11 / B1.20.1 / B16.25.

Structure Features:
★ End Connection: Threaded, Socket-Welded or Butt-Welded.
★ Outside Screw & Yoke, Bolted Bonnet.
★ Reduce Bore / Full Bore.
★ Non-Rising Stem / Rising Handwheel.
